Timeless Design - The first in Our Line with 60/40 Valve Spacing

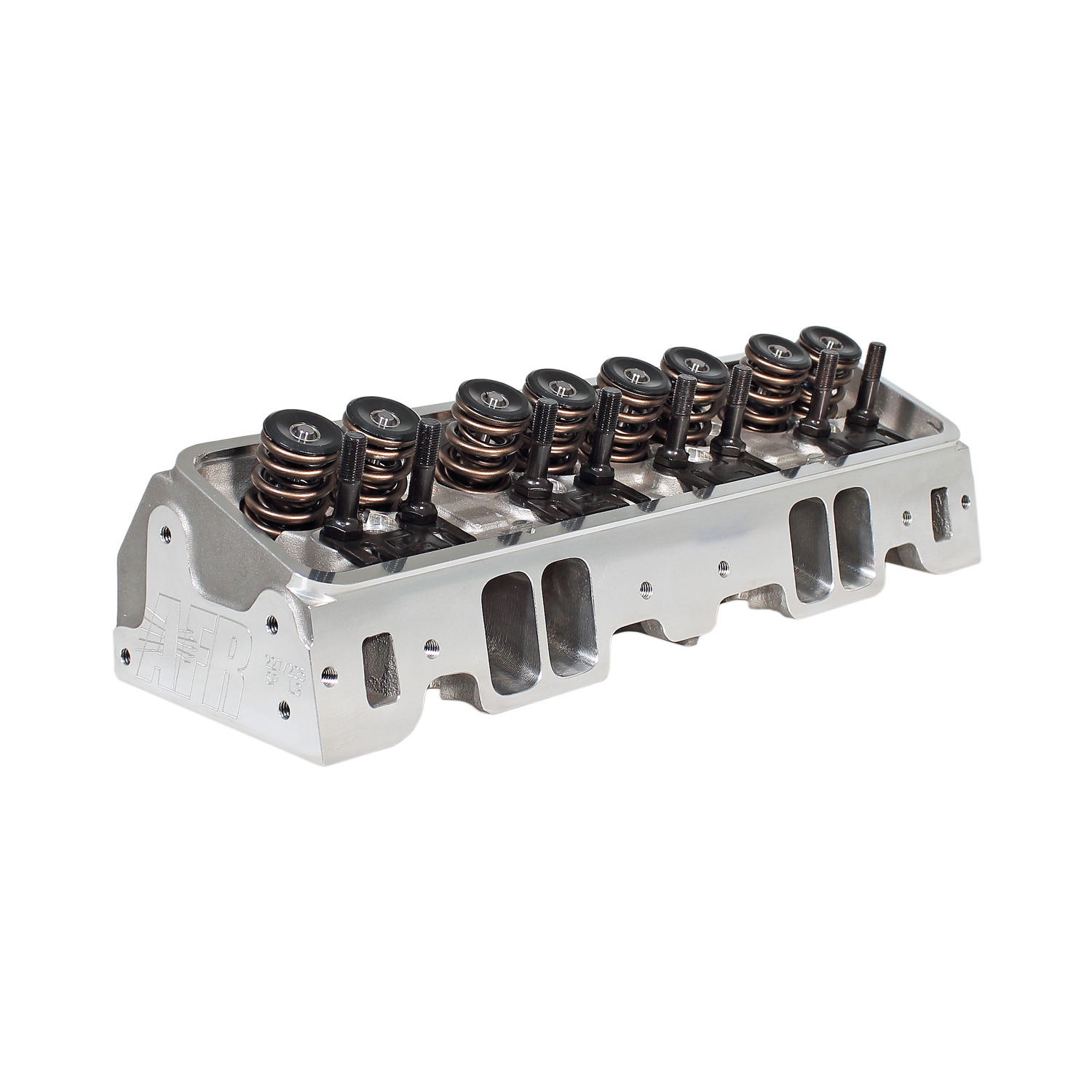

High flowing AFR 227cc intake port small block Chevy angle plug aluminum cylinder heads are available in two stages of performance. The Race Ready version features 100% CNC ported intakes while the higher flowing Competition version features 100% CNC ported intakes with greater detail. Both come with 100% CNC ported 55cc to 65cc combustion chambers and 80cc exhaust ports with a 3/4” thick head deck (ideal for nitrous or blower applications). In addition we also offer the “as cast” Stage 1 heads for 227cc performance on a budget. Standard valves are lightweight 8mm 2.100 intake and 1.600 exhaust with AFR’s hardened ductile iron interlocking valve seats. The 227 has 60/40 valve spacing and piston valve pockets should be checked. The exceptional flow characteristics and 23° valve angle make this the perfect head for 350 to 434 cid engines in drag cars, sprint cars, and late model oval trackers operating from 4500 rpm and up. The 227cc cylinder heads are available in either standard or spread port exhaust. AFR offset stud girdles are the only special parts required. Requires shaft mount rockers or .050 offset rocker arms for durability and reliability of valve train components. With the .050 offset the intake rocker arm will be at a slight angle and the roller tip will not be perfectly parallel or centered on the valve tip. Not recommended for street use, unless shaft mount rocker is used. The exhaust port and bolt pattern are raised .250 over GM L-98 cylinder head, this rarely affects header or chassis fitment.
Purchase directly from our partners website.Buy Now
