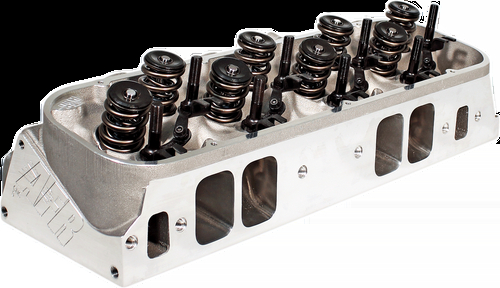

afr cylinder head, 24 bbc 385cc fully cnc ported, 121cc chambers, competition package, assembled, pair
More Images
Seller's Description
The 385cc heads are AFR’s largest and best fl owing BBC heads! They feature 100% CNC ported intake, exhaust & chambers, A356 aluminum castings, Titanium retainers, and high quality components throughout. These heads are best suited for large displacement (540+) high RPM Big Block Chevrolet racing engines. AFR heads are available bare (without parts), call our tech line for details. Please see footnotes for additional information.
385cc Competition Flow Chart | ||
---|---|---|
Part # | Description | Combustion Chamber |
2020-TI | Fully CNC Ported | 121cc |
385cc BBC | ||||||||
.200 | .300 | .400 | .500 | .600 | .700 | .800 | .900 | |
Int | 169 | 249 | 312 | 359 | 411 | 428 | 439 | 449 |
Exh | 139 | 190 | 245 | 280 | 299 | 309 | 315 | 321 |
$10,620.80 Purchase directly from our trusted partner VPW. Buy Now on VPW
Advertisement
Enquire about this part
Ad Id | JPFD5098934 |
Stock | AFR-2020-TI |
