BLACK SERPENTINE SYSTEM FOR 396, 427 & 454 - POWER STEERING & ALTERNATOR - ALL INCLUSIVE
$3,239
- Condition
- New
Description

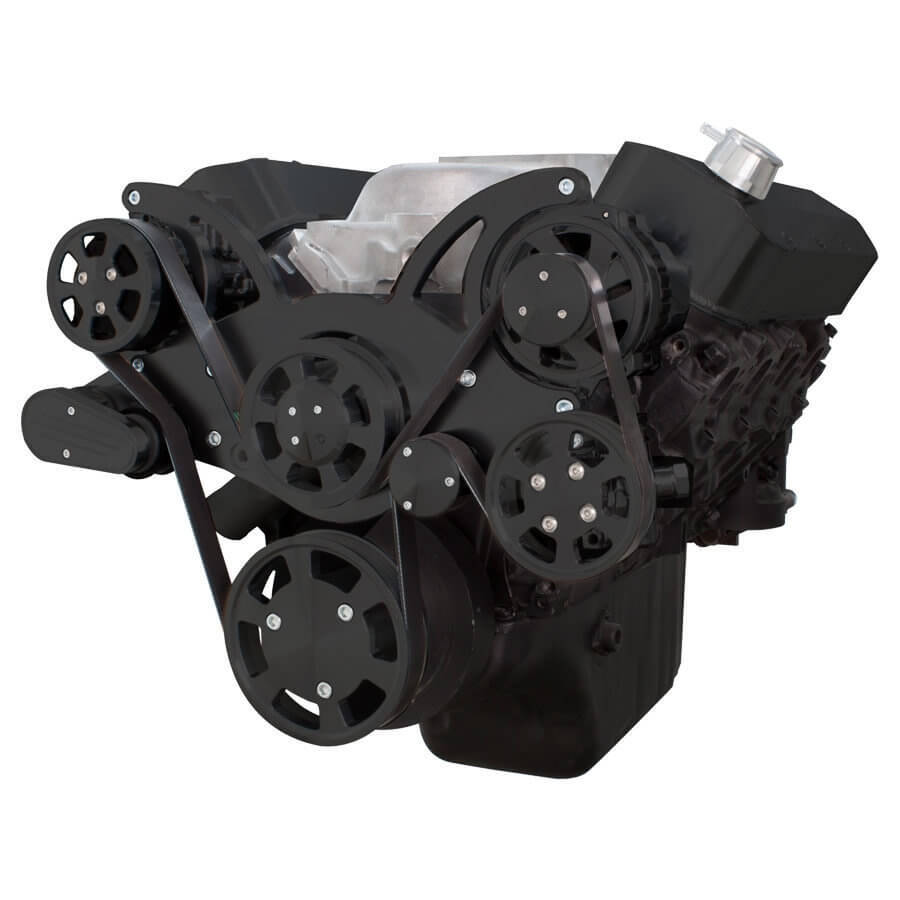

Black Big Block Chevy 396, 427 and 454 Engine Serpentine Conversion Kit
Power Steering and Alternator All Inclusive WRAPTORTM 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator and GM Type II Power Steering Pump. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes: High Flow Aluminum Water Pump - Black Powder Coated
140 Amp Black Powder Coated 1-Wire CS130 Alternator
Black Powder Coated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket - Black Bright Dip Anodized Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover - Black Bright Dip Anodized Aluminum
Crank Pulley - Black Bright Dip Anodized Aluminum
Crank Pulley Spacer - Billet Aluminum
Alternator Pulley & Cover - Black Bright Dip Anodized Aluminum
Power Steering Pulley - Black Bright Dip Anodized Aluminum
One Piece Billet Aluminum Bracket - Black Bright Dip Anodized Aluminum
AC Delete Idler Pulley & Bracket - Black Bright Dip Anodized Aluminum
Universal alternator fan - Black Bright Dip Anodized Aluminum
Application Notes: Upgrade to AC Only Requires Compressor Purchase.
Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Tall Deck BBC Engines
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost ($275 option)
If ordering without accessories, please call 651.356.8593 before ordering and see the requirements below: Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
Power Steering Pump - GM Type II Pump
Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side
8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
Reference: JPFD5118065
