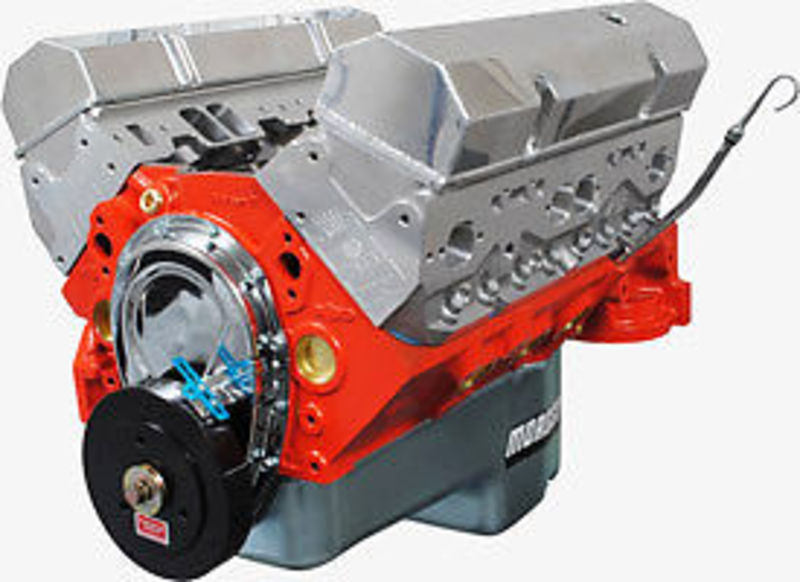

BLUEPRINT PRO SERIES CHEV SB 454 C.I.D CRATE ENGINE 575 HP/560 FT LBS PSE4540CT
How does 575 hp sound? It sounds like heaven on earth! Check out one of these BluePrint Pro Series Chevy 454 c.i.d. base crate engines. These powerhouses feature a 12-month warranty and they are the perfect choice for drivable and reliable high-end performance. Additionally, the BluePrint Pro Series Chevy 454 c.i.d. base crate engine assemblies are manufactured under strict tolerances and provide outstanding, consistent results. All of the rotating assemblies are balanced within 2 grams on a computerized balancer. BluePrint Pro Series crate engines are also dyno-tested. For high-horsepower, big displacement engines, the BluePrint Pro Series Chevy 454 c.i.d. base crate engines are the way to go!
Crate engine features include:
HP & Torque: Approx. 575 HP / 560 FT LBS
Compression Ratio: 9.5:1
Aluminum Heads
Roller Cam
Forged Crank
Part #: PS4540CT
Block:
New block
World Products Motown cast iron
2 piece rear main seal
4 bolt main
Driver side dipstick
4.250" bore
2pc RMS
Rotating Assembly:
4340 forged crank
4340 forged connecting rods
4.000" stroke and rods
Forged pistons
Mahle piston rings
Hydraulic roller cam
Cylinder Heads:
Aluminum, 64cc chamber
Manley valves
Comp cam pushrods
Rocker arms, 1.6 ratio
Melling oil pump
Cam Specs:
Cam Type: Roller
.609 Intake .576 Exhaust
244 Intake / 252 Exhaust duration
@ .050 - 112 degree lobe separation
Also Includes:
Valve covers, oil pan and timing cover
Harmonic balancer
How does 575 hp sound? It sounds like heaven on earth! Check out one of these BluePrint Pro Series Chevy 454 c.i.d. base crate engines. These powerhouses feature a 12-month warranty and they are the perfect choice for drivable and reliable high-end performance. Additionally, the BluePrint Pro Series Chevy 454 c.i.d. base crate engine assemblies are manufactured under strict tolerances and provide outstanding, consistent results. All of the rotating assemblies are balanced within 2 grams on a computerized balancer. BluePrint Pro Series crate engines are also dyno-tested. For high-horsepower, big displacement engines, the BluePrint Pro Series Chevy 454 c.i.d. base crate engines are the way to go!
Crate engine features include:
HP & Torque: Approx. 575 HP / 560 FT LBS
Compression Ratio: 9.5:1
Aluminum Heads
Roller Cam
Forged Crank
Part #: PS4540CT
Block:
New block
World Products Motown cast iron
2 piece rear main seal
4 bolt main
Driver side dipstick
4.250" bore
2pc RMS
Rotating Assembly:
4340 forged crank
4340 forged connecting rods
4.000" stroke and rods
Forged pistons
Mahle piston rings
Hydraulic roller cam
Cylinder Heads:
Aluminum, 64cc chamber
Manley valves
Comp cam pushrods
Rocker arms, 1.6 ratio
Melling oil pump
Cam Specs:
Cam Type: Roller
.609 Intake .576 Exhaust
244 Intake / 252 Exhaust duration
@ .050 - 112 degree lobe separation
Also Includes:
Valve covers, oil pan and timing cover
Harmonic balancer
