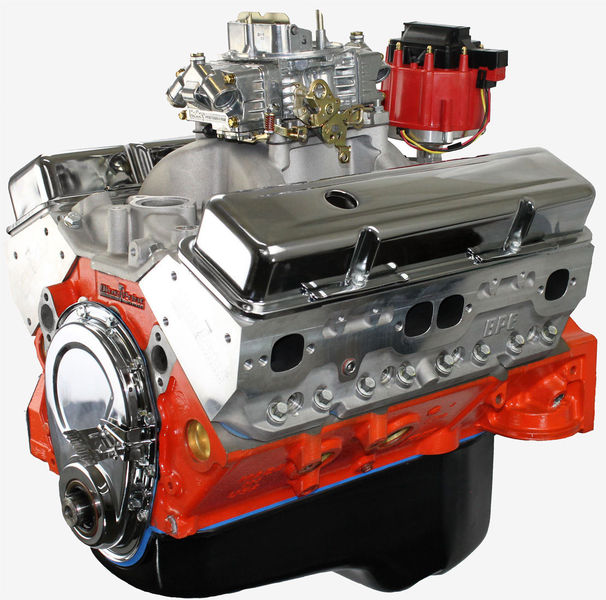

chevrolet 400 - 460 hp crate engine - bp4001ctc1 - not chev 283 327 350 383

GM 400 � Base Engine � Aluminum Heads � Roller Cam


HP & Torque: 460 HP / 470 FT LBS

Compression Ratio: 10.3:1

Aluminum Heads

Hypereutectic Pistons

Roller Cam

Cast Steel Crank

Part #: BP4001CTC1


Block:

BRAND NEW BluePrint Cast Iron Block

4 Bolt Mains

Square and parallel decked

Align honed main bearing bore

Cylinders are sonic tested for thickness

Cylinders honed on computer controlled machine to within .0002 straightness and roundness

1-Piece Rear Main Seal


Rotating Assembly:

New cast crankshaft

Cast 5.7" connecting rods

150,000 psi rod bolts

Hypereutectic pistons

Hastings moly rings

Rotating assembly balanced to within 2 grams

High volume oil pump

Hydraulic roller cam

Roller lifters


Cylinder Heads:

BluePrint aluminum � 64cc chamber

Hardened retainers and springs

2.02 swirl polished intake valves

1.600 swirl polished exhaust valves

BP Aluminum Head Part# H8002K


Cam Specs:

Cam Type: Roller

.544 Intake .555 Exhaust

230 Intake / 236 Exhaust duration

@ .050 - 110� lobe separation


Ignition Timing:

10-16� inital and total timing 32-34� at 3500 RPM


Also Includes:

Intake Manifold � dual plane, satin aluminum

Carburetor � Holley 750cfm

Valve covers, oil pan and timing cover

Brass freeze plugs

Dyno test results shipped with engine


Notes:

NEW BluePrint block manufactured

and machined in the USA!
