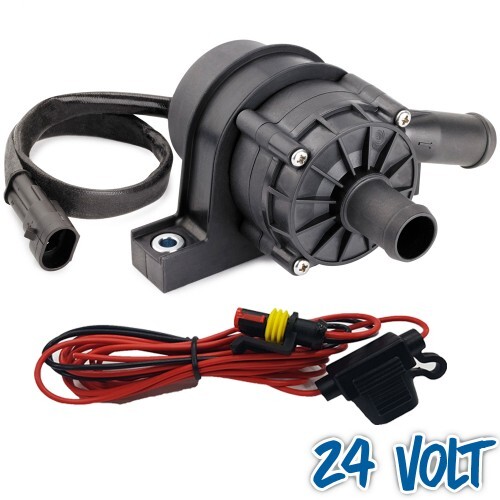

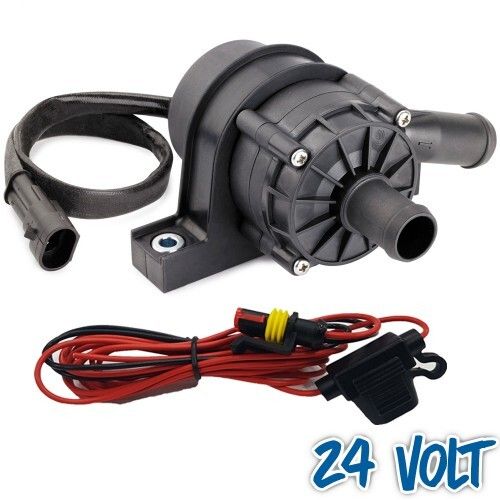

EBP40 - Electric Booster Pump Kit (24V) (Part #9041)
The EBP®40 is a brushless 24 volt, high flow (37 litres / 9.8 gallons per minute), magnetically driven water pump. The motor has no brushes to wear out, and the pump is magnetically driven by the motor, which eliminates the need for shaft sealing.
Applications include car heater and LPG systems, solar pump applications, water-cooled motorcycles, go-kart engines, turbo air/water intercoolers, and household irrigation. This pump is UN ECE Regulation 10 compliant for improved electromagnetic compatibility (EMC) in automotive applications (Approval No: E24*10R06/02*4620*00).
KIT CONTENTS
Description
Units
Electric Booster Pump (EBP®40)
1
EBP®23, 25, 40 Wiring Loom (AMP Plug)
1
Installation Instructions
1
SPECIFICATIONS
Operating Voltage
12V to 28V DC
Maximum Current
2.5 Amps
Maximum Flowrate
37 l/min (9.8 gal/min)
Maximum Head Pressure
0.85 Bar (12.32 PSI)
Maximum Head Height
8.5m (27ft 10.65in)
Fluid Temperatures
-40°C to 120°C (-40°F to 248°F)
Pump Weight
570 grams (1.25 lbs)
Body Material
Polyphenylene sulphide (PPS) & Nylon 66
Burst Pressure
252 kPa (38 PSI)
Inlet & Outlet
Push on Barb
Hose Fitment
19mm (3/4")
Hose Fitment with Step Adapter
12mm to 16mm (1/2" to 5/8")
