Thermatic® Fan Switch (Mechanical) plus Relay (Suit Air Con) (Part #0404)
The Mechanical Thermatic® Fan Switch with Relay (12V & 24V) is designed for use with Davies Craig Thermatic® Fans and Electric Water Pumps (EWP®). This switch senses coolant temperature after it exits the engine block and adjusts fan operation accordingly. It is adjustable from 40°C to 100°C (104°F to 212°F).
The relay kit enables fan operation thermally and in conjunction with air conditioning systems. It includes everything required for easy installation and effective performance.
24 Volt Application: Kit is sold in a 12V configuration. For 24V applications, purchase one 24V relay for each electric fan (Part #10534).

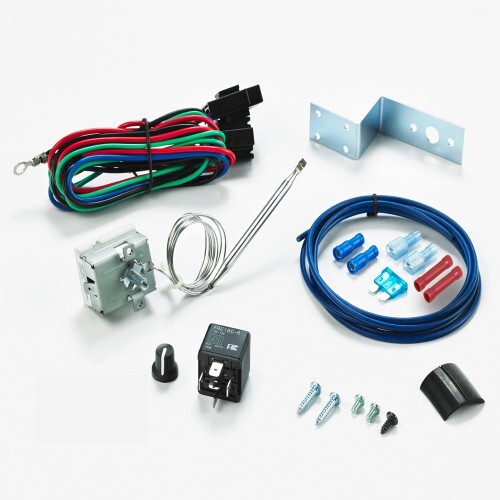

KIT CONTENTS
Description
Units
Thermal Switch & Accessories
1
Relay - 12V 40 Amp 5 Pin
1
Fuse Wedge - 15 AMP
1
Rubber Seal (Suits 1mm Capillary)
1
Thermal Switch Knob
1
Red Wire Joiner
2
Installation Instructions
1
SPECIFICATIONS
Temperature Range
40°C to 100°C (104°F to 212°F)
Lead Length
100cm
Sensor Probe Size
Suits 6mm Olive
Features & Benefits:
Adjustable temperature range for precise fan control
Includes relay for thermal and air conditioning fan operation
Compatible with 12V and 24V systems (additional relays required for 24V applications)
Easy, do-it-yourself installation
$73.63Purchase directly from our trusted partner VPW. Buy Now on VPW
