EWP®150 Remote Electric Water Pump (12V) (Part #8160)

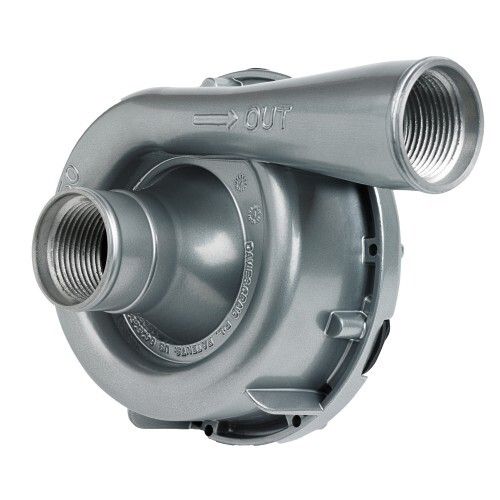

The EWP®150 Alloy Electric Water Pump is designed for remote mounting in the engine bay, making it an ideal solution for high-horsepower, turbocharged, supercharged, and modified engines. It is extensively used in intercooler applications and provides efficient cooling for engines generating excessive heat.
This rugged, high-flow pump eliminates the parasitic power losses of mechanical water pumps, delivering up to 10kW (13hp) of additional power and improving overall engine performance.
CONTENTS
Part Description
Units
EWP®150 Alloy
1
TECHNICAL SPECIFICATIONS
Operating Voltage
3V DC to 15V DC
Maximum Current
10A @ 13V
Flow Rate (Max)
162 L/min (42.8 US gal/min)
Operating Temp.
-40°C to 120°C (-40°F to 248°F)
Pump Weight
1170 grams (2.6 lbs)
Pump Material
Aluminum (Powder Coated)
Burst Pressure
500 kPa (72.5 PSI)
Seal
Ceramic Face Seal
Fits Hose Sizes
35mm to 51mm (1?" to 2")
Push-On Fitting Size
38mm (Options: 44mm with 3mm Sleeve #8510, 51mm with 6mm Sleeve #8511)
Internal Fittings
Inlet & Outlet: -16AN ORB
EWP & Controller Installation Demonstration
$219.16Purchase directly from our trusted partner VPW. Buy Now on VPW
