ford windsor 408 c.i.d. stroker crate engine 425hp455 ft-lbs fmm-6007-c408bp

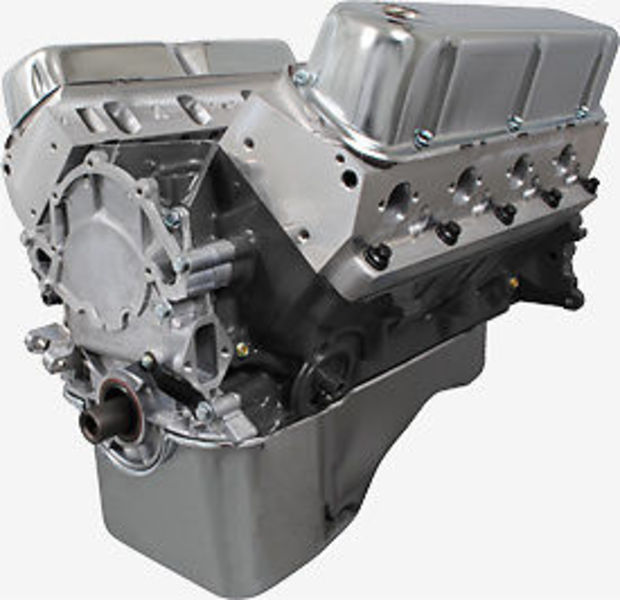

FORD WINDSOR 408 C.I.D. STROKER CRATE ENGINE 425HP/455 FT-LBS FMM-6007-C408BP

Give your ride some kick with one of these BluePrint Engines Ford 408 C.I.D. 425HP stroker base crate engines. These engines are built with one goal in mind, giving you the ground pounding power you need. Each of these engines is hand built, balanced and tested to ensure it will throw out some serious power, but do it reliably. BluePrint uses only high quality, handpicked parts to ensure these engines are second to none.



Specs:

Engine Type: Ford Windsor 408 C.I.D Stroker, Long


BLOCK:


Hand picked 2 bolt main seasoned 351 Windsor blocks bored .040 over
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness

ROTATING ASSEMBLY:


New cast steel crankshaft
New I-beam rods
Hypereutectic pistons
Hastings Moly rings
Rotating assembly balanced to within 2 grams
Melling high volume oil pump
Hydraulic roller camshaft
Cloyes double roller timing chain
Camshaft degreed for maximum horsepower

CYLINDER HEADS:

Aluminum, 58cc
Hardened retainers and springs
1.94 swirl polished intake valves
1.60 swirl polished exhaust valves

A TON OF EXTRAS:


Oil pan, timing cover and valve covers
Dyno tested
Comes with 12 month warranty

CRITICAL SPECS:





CAMSHAFT INSTALLATION:


.543 Intake / .554 Exhaust & 218 Intake / 226 Exhaust duration @ .050 - 112 degree lobe separation

HORSEPOWER:


Approx. 425

TORQUE:


Approx. 455

COMPRESSION RATIO:


9.7 to 1










Please call if you have any questions, We can supply ignition system or additional parts to complete this engine, please call 02 60255666.
