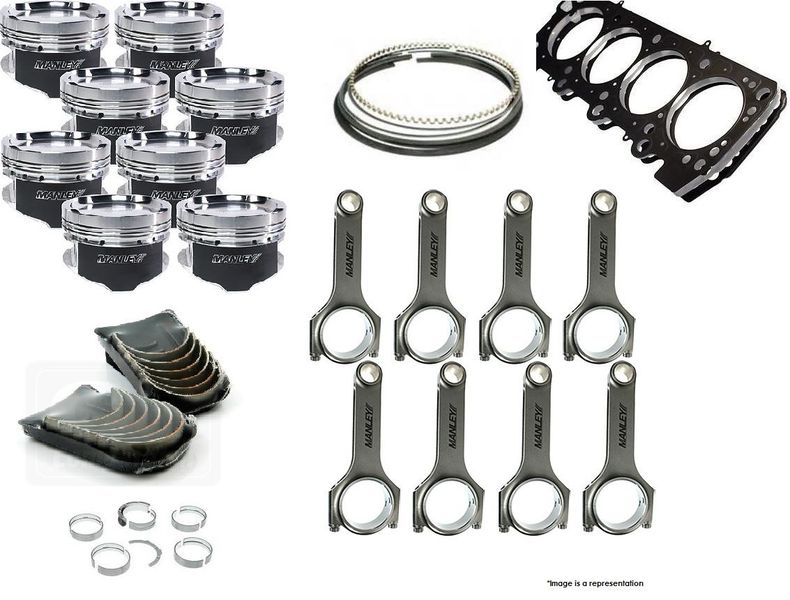

Manley 598105C-8 - Manley Ford 5.0L Coyote Dish Top Pistons Details

Technical Specs:

Compression Ratio: 9.0:1
Compression Height: 1.165''
Piston and Pin Weight: 471 grams
Dish Top: -12cc
Pin Size: 2.500'' long, .150'' wall
Ring Grooves: 1.2mm Top; 1.2mm Middle; 3.0mm Bottom
Piston Clearance: .003'' measured 0.850'' from bottom of the oil ring


Manley 46710ST-8 Ring Set -3.640 1.2mm,2.8mm Steel

Conrod Bearing Set Ford 4.6 / 5.4 / 5.0 Coyote H 010 CB1442HN-010

Cometic C5286-040 Right Head Gasket 95MM .040" Ford 5.0L V8 COYOTE

Cometic C5287-040 Left Head Gasket 95MM .040" Ford 5.0L V8 COYOTE

Manley 14042R-8 - Manley Ford 4.6L Modular H-Beam Connecting Rods

Standard Weight Series H-Beam Rods

2.086'' (Stock) Crankshaft Journal
ARP 2000 Cap Screws

*NOTE: Horsepower range could be exceeded depending upon RPM, Stroke, Piston Weight and Power Adders.

Ford 4.6L Modular / 5.0L Coyote H-Beam Connecting Rods

5.933'' (Stock) Center-to-Center
2.086'' Crankshaft Journal Size
2.239'' Big End Bore
22mm/0.8671'' Piston Pin Bore
3/8'' ARP 2000 Cap Screws
602 Grams
8/pkg.


Clevite H-Series Rod Bearings CB-1442HN

Bearing Usage: Performance
Bearing Material: TM-77
Dowel Pin Hole: No
Chamfered Bearing: Yes
Grooved Bearing: No
