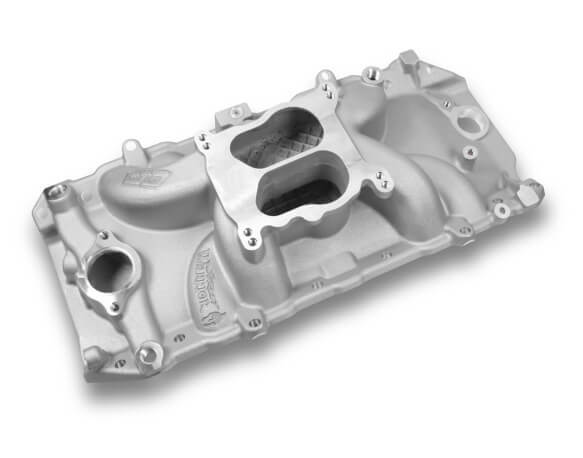

intake manifold street warrior dual plane aluminum square/spread bore chevy big block peanut port each

Most of the intakes on the market were developed 20+ years ago when typical engines were 396-454 cubic inches. Not so anymore. With the popularity of larger engines, stroker combinations and more efficient cylinder head and cam designs came the need for intake manifolds to support these combinations. Designed with Computational Fluid Dynamics software, the Street Warrior intake rises to the challenge and delivers the performance to conquer the competition! Want maximum horsepower and torque from today's engines? Choose Street Warrior!
Features:

All new optimized design for today’s higher output big block engines

Idle to 5,500 RPM band

Universal dual pattern carb flange accepts spread bore (Quadrajets) and square bore carbs

Runner geometry optimized using Computational Fluid Dynamics software for even fuel & air distribution

Sand Cast 319 aluminum construction is precision CNC machined providing lighter castings with better surface finishes

Low rise dual plane design delivering friendly power and torque across the usable RPM range

Peanut Oval Port Dimensions: 1.570" High x 1.600" Wide

Height: Front 4.25", Rear 5.42"

Specs:
- Barrels: 4
- Brand: Weiand
- Construction: Cast
- Emission Code: 3
- Engine: Chevy Big Block V8
- Finish: Satin
- Fuel System Type: Carb
- Manifold Type: Low Rise - Product Type: Intake Manifold
- RPM Power Band: Idle-5500
