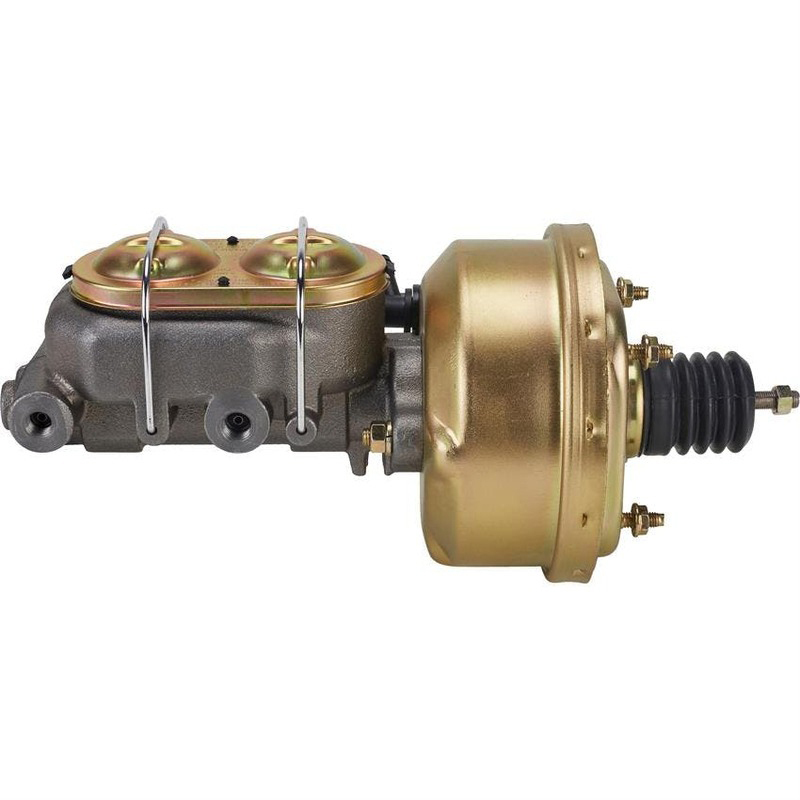

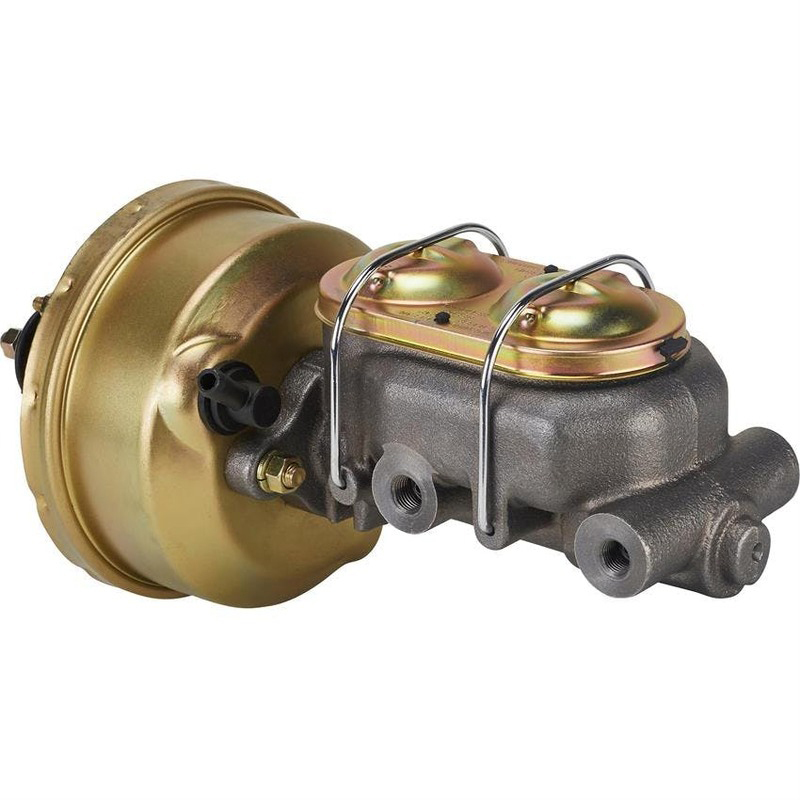

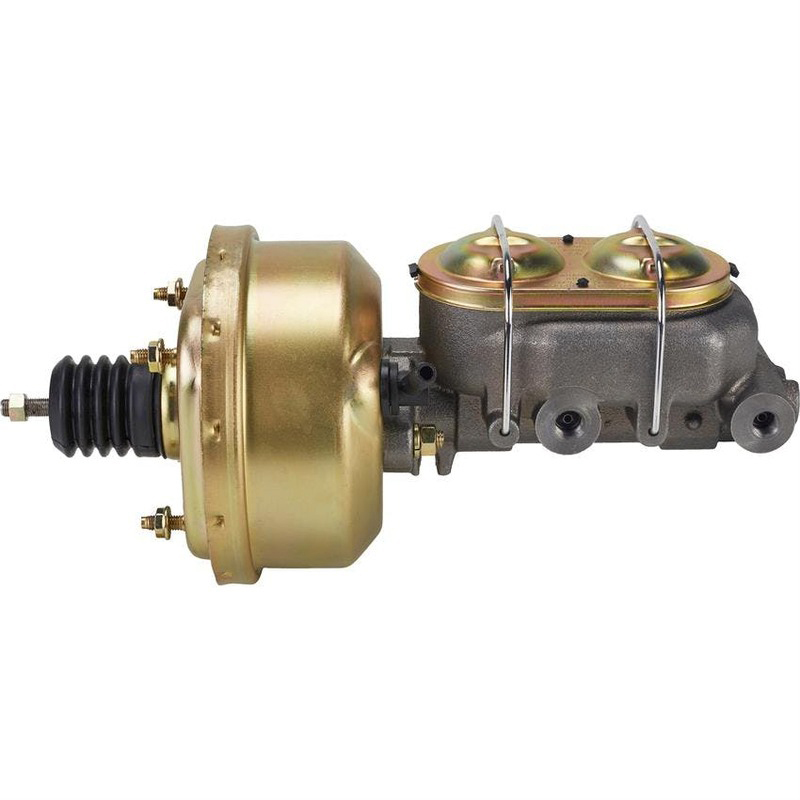

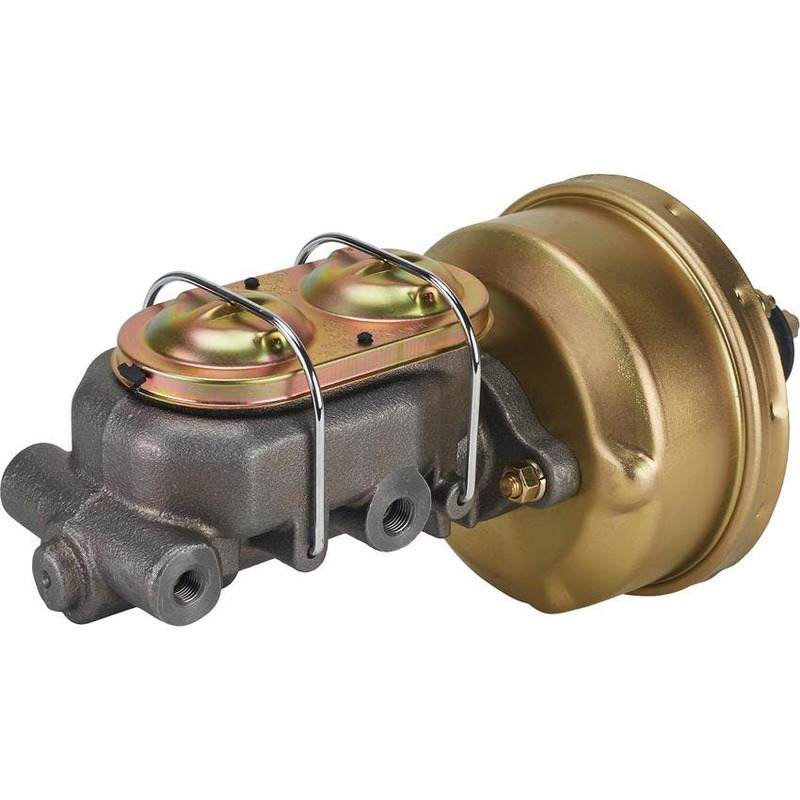

proflow 7'' brake booster & master cylinder combo, universal, 1 1/8 '' master cyl bore, booster single 7 '' kit

Compact for installation under floor or on firewall of almost any vehicle. Booster measures only 7" in diameter. Cast iron master cylinder has a 1-1/8" bore and is suited for disc-disc or disc-drum combinations.

Master cylinder features two 3/8"-24 inverted flare ports on each side (plugs are included for ports not in use).

Specs

• Pushrod-to-mounting flange is 5-1/2"


• Four bolts on 3-3/8" centers


• Booster is 3.75" thick


• Master cylinder combo is 11.875" from end of the master cylinder to the firewall


• (4) qty 3/8"-24 outlet ports (2 plugs included)


• 8" from mount to outer edge
