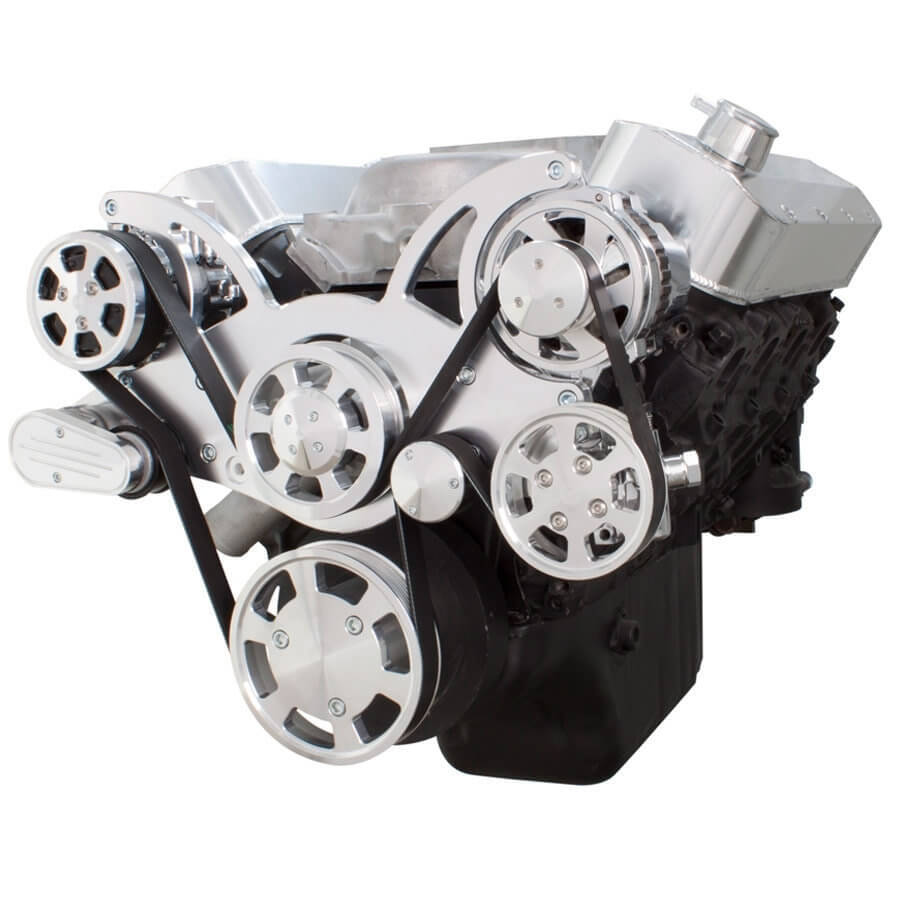

SERPENTINE SYSTEM FOR BIG BLOCK CHEVY - AC, POWER STEERING & ALTERNATOR - ALL INCLUSIVE

Description

Big Block Chevy 396, 427 and 454 Serpentine Conversion Kit
Air Conditioning, Power Steering and Alternator All Inclusive WRAPTORTM 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
All Inclusive Kit Includes: High Flow Aluminum Water Pump
140 Amp Chrome 1-Wire CS130 Alternator
Chrome AC Compressor
AC Compressor Clutch Cover - Polished Billet Aluminum
Chrome Plated Aluminum GM Type II Power Steering Pump
Remote Mount Reservoir with Bracket - Polished Billet Aluminum
Gates Premium Green Strip 8 Rib Belt
Water Pump Pulley & Cover - Polished Billet Aluminum
Crank Pulley - Polished Billet Aluminum
Crank Pulley Spacer - Billet Aluminum
Alternator Pulley & Cover - Polished Billet Aluminum
Power Steering Pulley - Polished Billet Aluminum
One Piece Bracket - Polished Billet Aluminum
Universal Alternator Fan - Polished Billet Aluminum
Application Notes: Works with either Mechanical or Electric fuel Pump
Works with either Mechanical or Electric fan (may require long fan spacer)
Works with either Standard or Tall Deck Engines
Power Steering Lines from pump to reservoir not included
Compatible with Hydroboost ($275 option)
If ordering without accessories, please call 651.356.8593 before ordering and see the requirements below: Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
Power Steering Pump - GM Type II Pump
Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side

8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
