strange, differential case, nodular iron, 9 in. ford, 3.250 in. carrier bearing size, each

Strange 9 in. Iron Cases

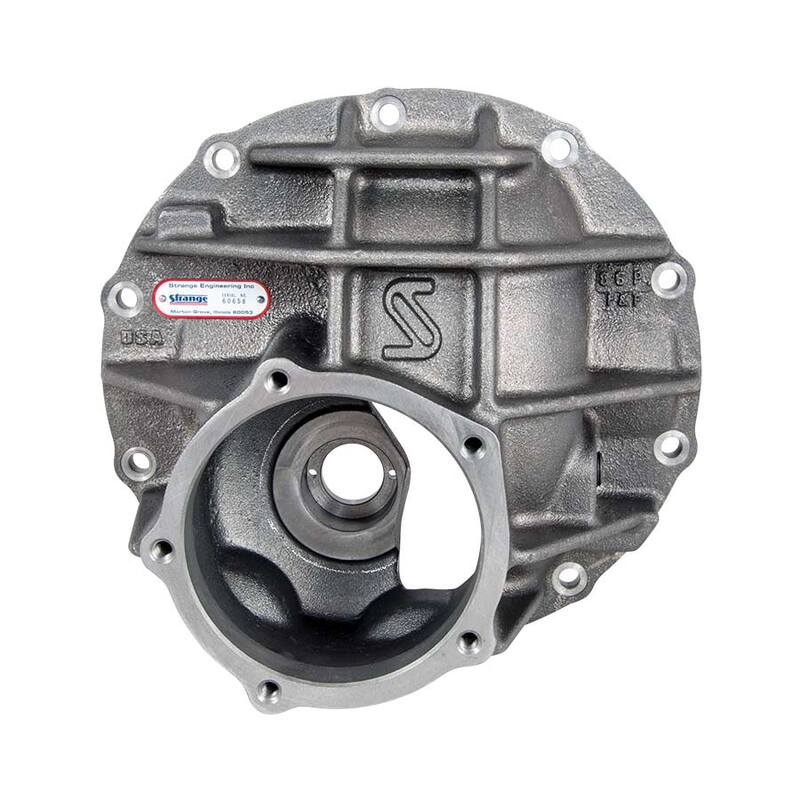

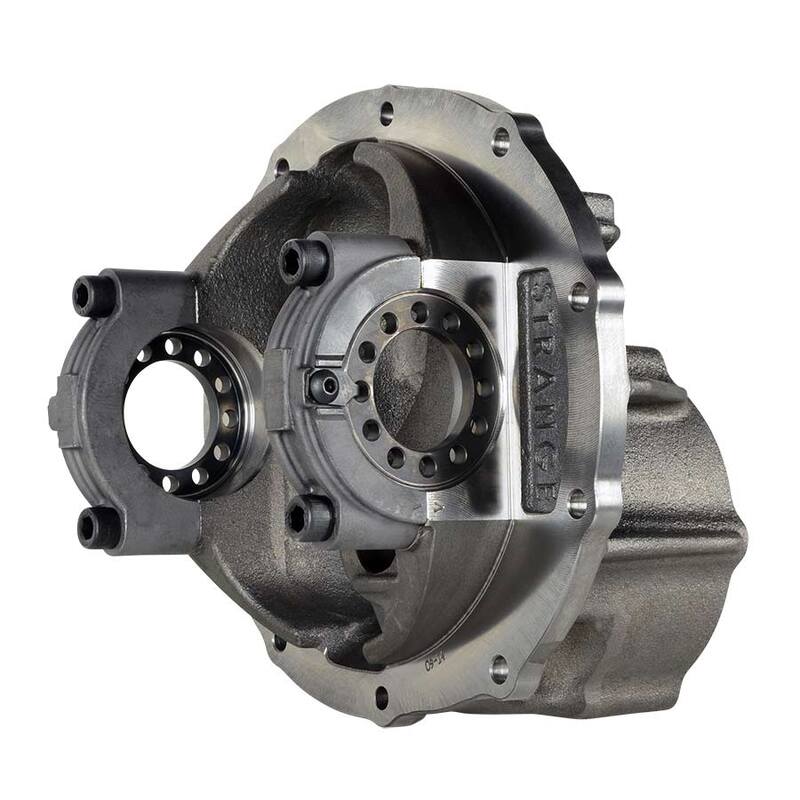

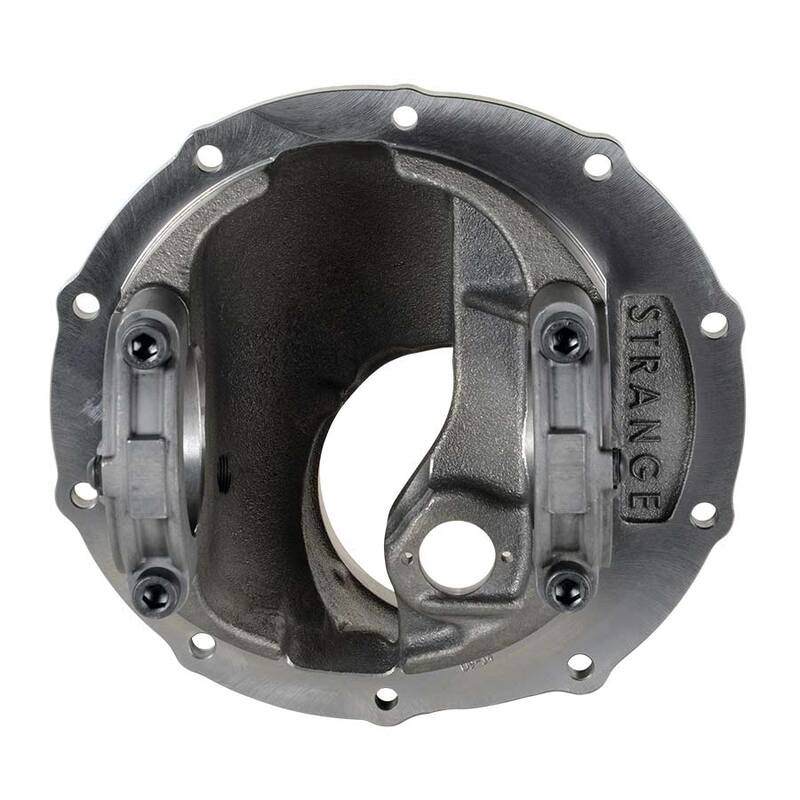

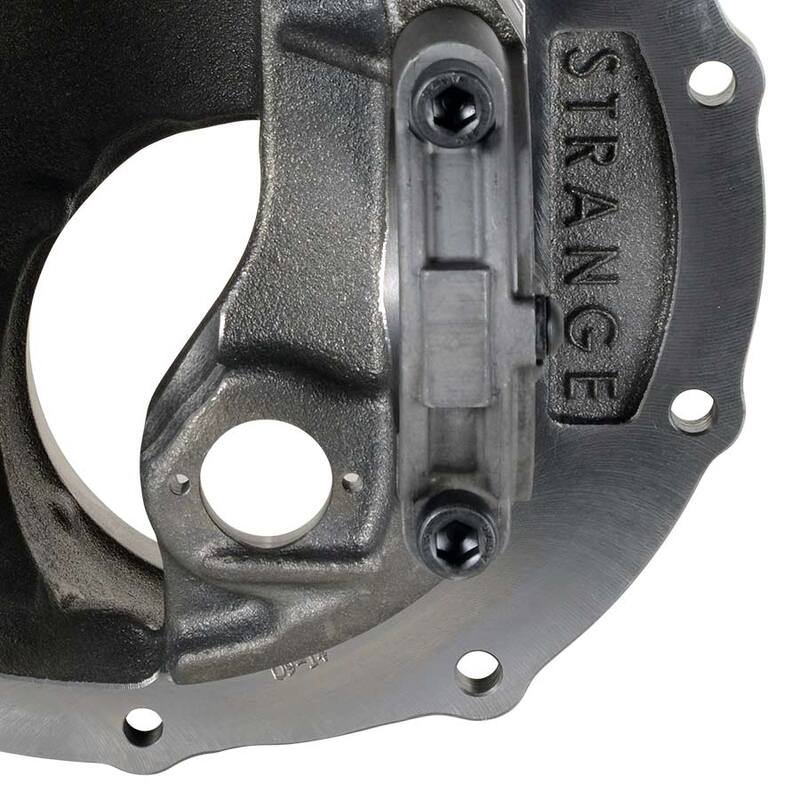

Strange 9 in. nodular iron cases have steel bearing caps with socket head cap screws and machined adjusting nuts. The cases use D-4512 nodular iron--eight percent stronger than OEM nodular iron--and have extra material around the pinion pilot bearing area to prevent cracking. The bolt holes are deep-tapped and cast with extra material around their diameters. Bearing bores and reinforcing ribs are also cast with additional material for strength, and the stud holes are spot-faced to prevent leaks and mounting surface damage.

Part Number: N1906

Application

Differentials

35 spline

Spools

35 and 40 spline

Accepts OEM and aftermarket Ford 9″ pinion supports

Description

Strange Heavy Duty 9″ Nodular Iron Case

Features

• 8-10% stronger material than stock nodular iron

• Additional mass in all critical areas

• Chrome moly main caps

• Solid adjuster nuts

• Designed & machined by Strange

• Cast in the USA
