TRAMSMISSION,SMART-TECH HSNG W/HD SHAFT,SMART-TECH INPUT HOUSING KIT WITH HEAVY DUTY INPUT SHAFT, FITS 300MM RELUCTOR-STYLE UNITS ONLY

Description

Limitations of the GM 4L60-E, 4L65-E, 4L70-E OE input housing are the root cause of 3-4 burnup in performance applications. The weak OE backing plate flexes during clutch apply, allowing heat to build up unevenly within the clutch pack’s limited space. Stop the flex and you stop 3-4 clutch failure. The unique Sonnax Smart-Tech housing design makes room for a taller clutch pack anchored in place by a stronger backing plate, making it the only way to increase clutch capacity and protect against destructive heat. Numerous other improvements to the housing ensure maximum durability and protection against failure in higher horsepower, higher pressure applications.
Smart-Tech input housing kit with heavy duty input shaft 77733-12K fits 300mm reluctor-style units. The high-strength shaft features many unique refinements available only from Sonnax, including a unique design that protects against failure from stress cracks. Both the housing and shaft also are available separately. Physically larger clutch pack area for increased 3-4 clutch capacity without sacrificing clutch durability. Use your choice of: Eight .067" frictions with seven .095" steels
Nine .062" frictions with eight .077" steels

Anchored backing plate keeps clutches parallel to stop the flexing and distortion that leads to heat build-up
Treated housing is significantly more resistant to fatigue failure
Steel reinforcement sleeve prevents breakage in the spline area
Custom backing plate replaces OE retaining ring to eliminate risk of blowout
Requires '91-later 3-4 apply ring; Requires '97-later ring gear; Requires '97-later stamped steel forward piston. Cannot be used with aluminum forward piston or Sonnax billet forward piston 77764-01. See instructions for further detail.

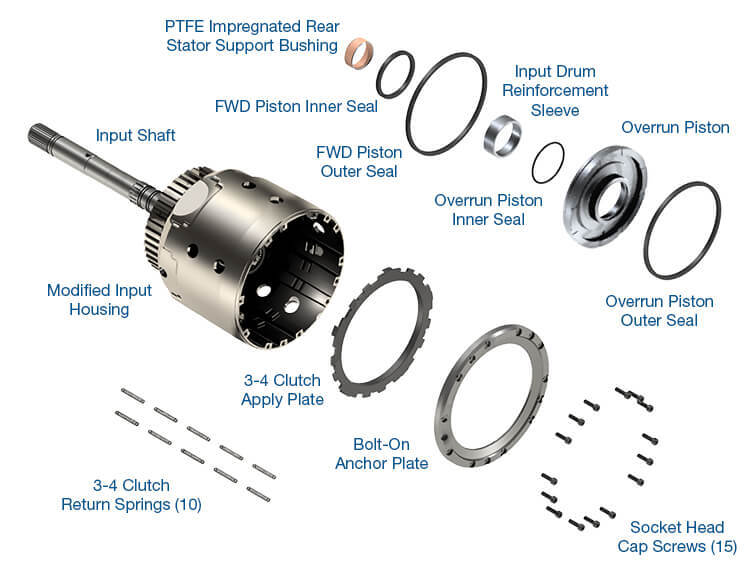

Includes: PTFE Impregnated Rear Stator Support Bushing
Input Drum Reinforcement Sleeve installed
Overrun Piston Inner Seal
Overrun Piston Outer Seal
3-4 Clutch Apply Plate
3-4 Clutch Return Springs (10)
Bolt-on Anchor Plate
Socket Head Cap Screws (15)
Overrun Piston
Smart-Tech Input Housing with 300mm Reluctor-Style Input Shaft Assembly
