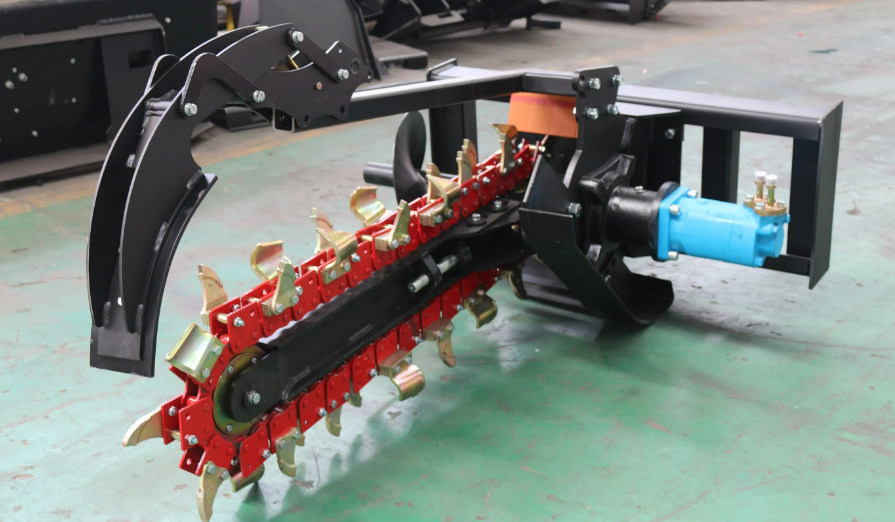

Our Trencher incorporates Manganese alloy tines to provide a multi purpose attachment suitable for a variety of applications. Used by rental yards, contractors, and developers to dig trenches for water, electrical, drainage, or footings in many different soil conditions. The Eaton drive motor mounts to an industry-leading planetary drive that provides the high torque to the digging chain.
With only the highest quality hydraulic motors and using planetary gearbox, EMED trenchers have the reliability and power to ensure your trenching is carried out with ease. Chains are available in several different tooth configurations, whether you’re trenching in soft ground, mixed grounds or even permafrost allowing you to get the job done no matter what environment you are in. With the precision depth control skid the operator can accurately set the desired trench depth and be sure of accuracy for the entire length.
Skid Steer Trencher Features
● Universal mounting quick attach, included to suit your machine
● High designed to quickly and reliably dig trenches 24, 36, or 48 inches deep
● 6”, 8” and 10” chain widths available.
● USA Eaton direct drive motor ensures optimum performance and longevity and allows forward and reverse operation
● Heavy frame construction stands up to everyday rugged use
● Machined and enclosed front bearings are protected against dirt and offer extended life
● All Trenchers are supplied as standard with high quality hoses and adaptors
Model Weight Trenching Depth Trenching Width Number of Teeth Operation Pressure Oil Flow L*W*H Unit Kg Lbs mm Inches mm Inches Pcs Mpa l/min Gpm m 36” 460 1012 915 36 200 8 29 16 50-100 13-26 1.9*1.2*0.9 48″ 520 1144 1220 48 300 12 29 16 75-100 20-26 2.9*1.4*0.9
