Description

Designed For Drag Racing Only. Pro Gears may be necessary when tooth breakage occurs with Standard gear sets. Produced from a softer material, the teeth can flex as opposed to crack and break. The life expectancy can vary anywhere from 15 to 300 runs depending on the vehicle. If a Standard gear provided acceptable life, a Pro gear may not be the right choice.

- Machined From 9310 Forged Steel.
- Heat Treated to Optimize Material Properties.
- Matched Ring & Pinion Set.

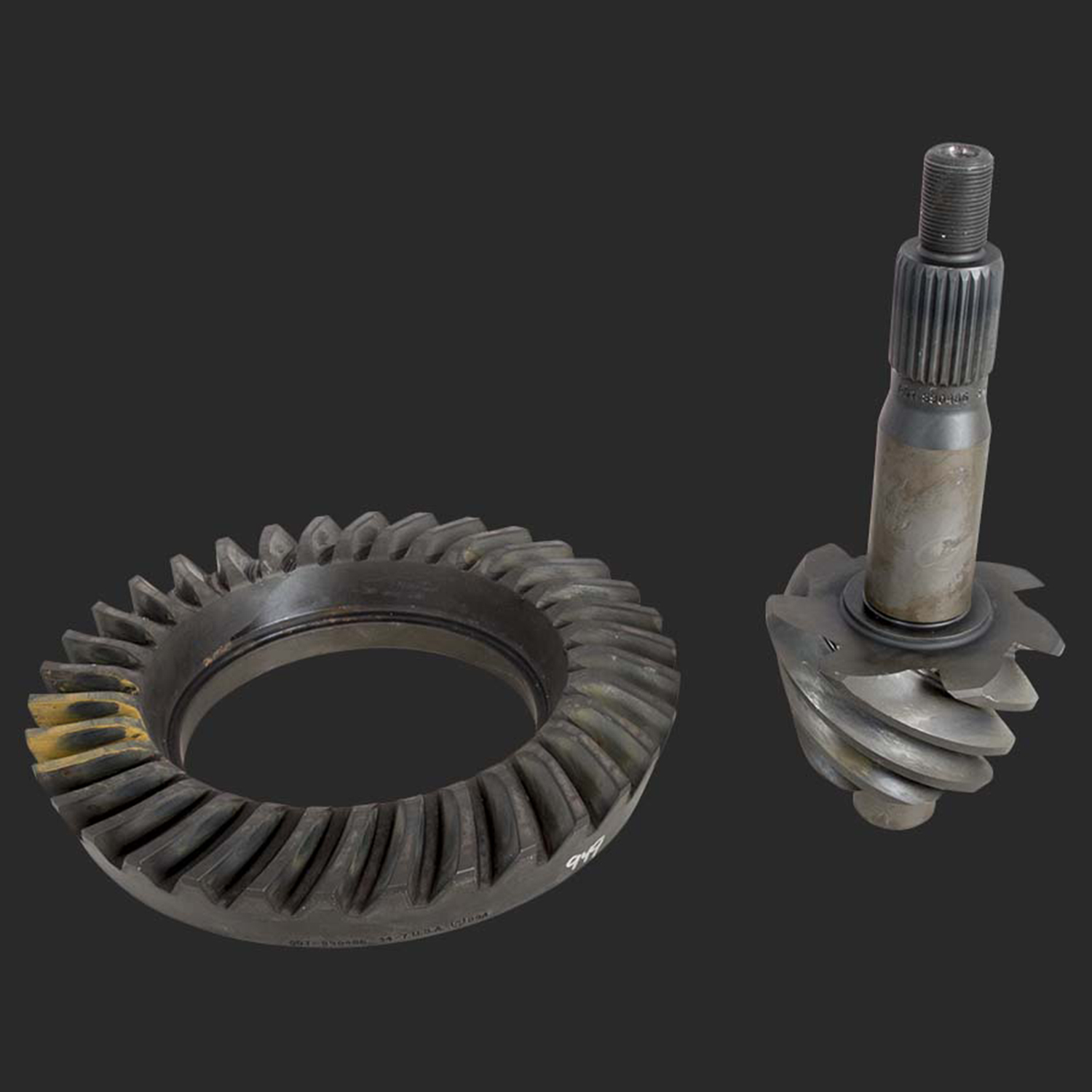

Ring Gear
– 9? OD
– Tooth count 38
– 10 bolt holes
– 7/16?-20 RH threads

Pinion
– 28 spline shaft
– Tooth count 7
– 3/4?-20 RH threads

Reference: JPFD5141830
