afr cylinder head, 24 bbc 345cc partially cnc ported, 117cc chambers, race ready, assembled, pair




More Images
Seller's Description

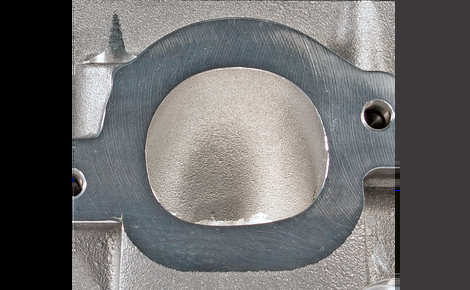

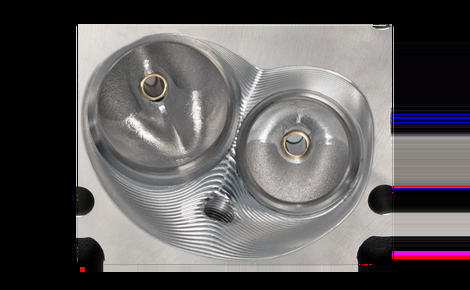

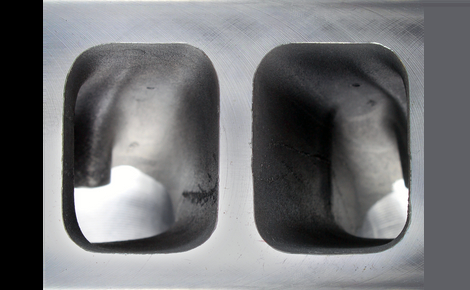

AFR’s 345cc heads are designed feature partially CNC ported intake, exhaust & chambers, A356 aluminum castings and high quality components throughout. Recommended for more radical street/strip, “Pro Street”, or racing builds with displacements up to 572 cubic inches, operating up to 7000 RPM. These heads are capable of flowing 401 CFM at 0.700" of lift. AFR heads are available bare (without parts), call our tech line for details.
| 345cc Aluminum BBC Cylinder Heads | ||
|---|---|---|
| Part # | Description | Combustion Chamber |
| 2110 | CNC Bowl Blend & Partial CNC Chamber | 117cc |
| 2110-1 | CNC Bowl Blend & Fully CNC Chamber | 121cc |
| 345cc BBC Partial CNC Chamber Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .600 | .700 | |
| Int | 149 | 221 | 280 | 322 | 360 | 382 |
| Exh | 129 | 184 | 222 | 251 | 259 | 264 |
| 345cc BBC Full CNC Chamber Flow Chart | ||||||
| .200 | .300 | .400 | .500 | .600 | .700 | |
| Int | 157 | 231 | 289 | 336 | 365 | 375 |
| Exh | 138 | 193 | 236 | 253 | 262 | 266 |
$6,900.00 Purchase directly from our trusted partner VPW. Buy Now on VPW
