richmond gear transmission, super street 5-speed, 26spl, 600 max. torque, kit

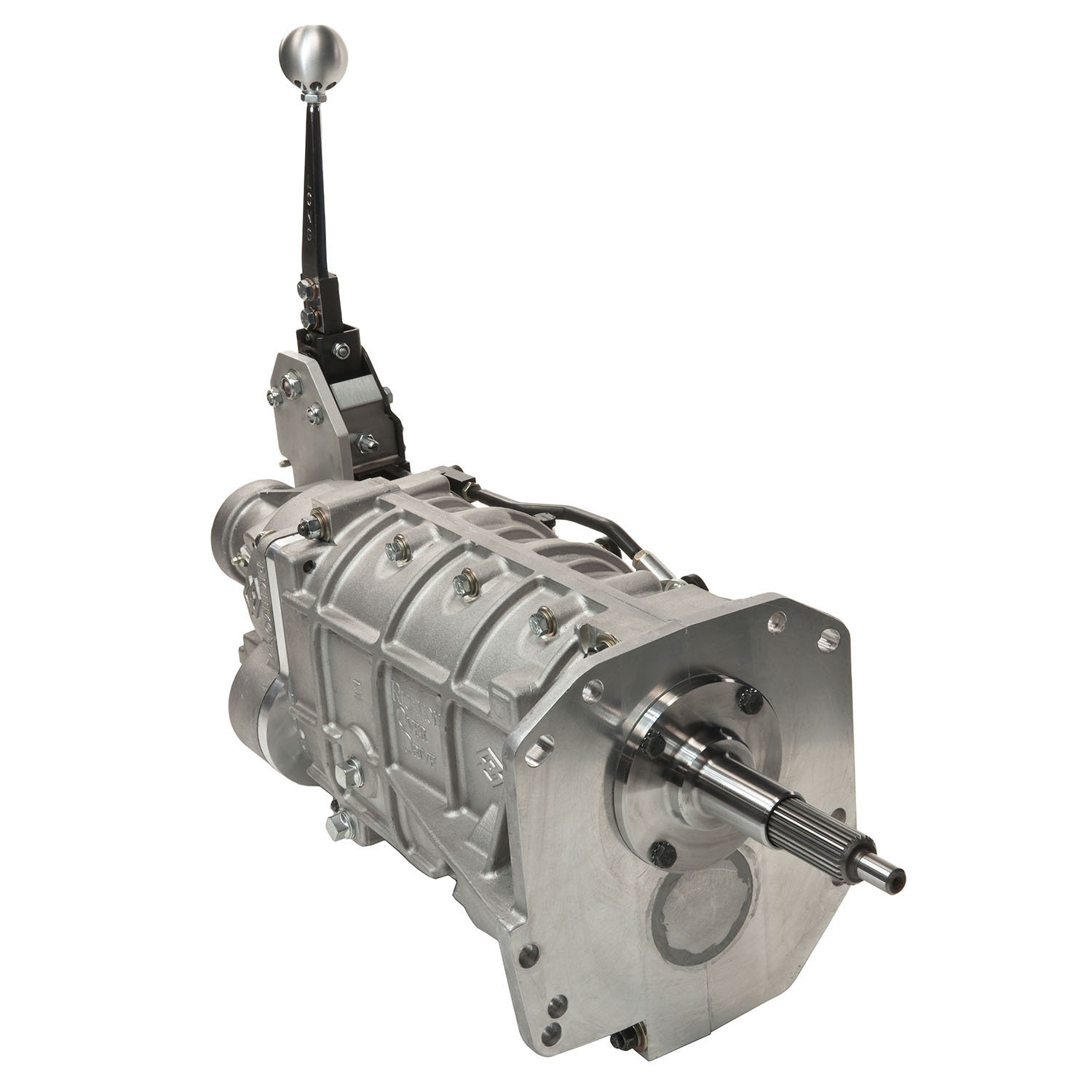

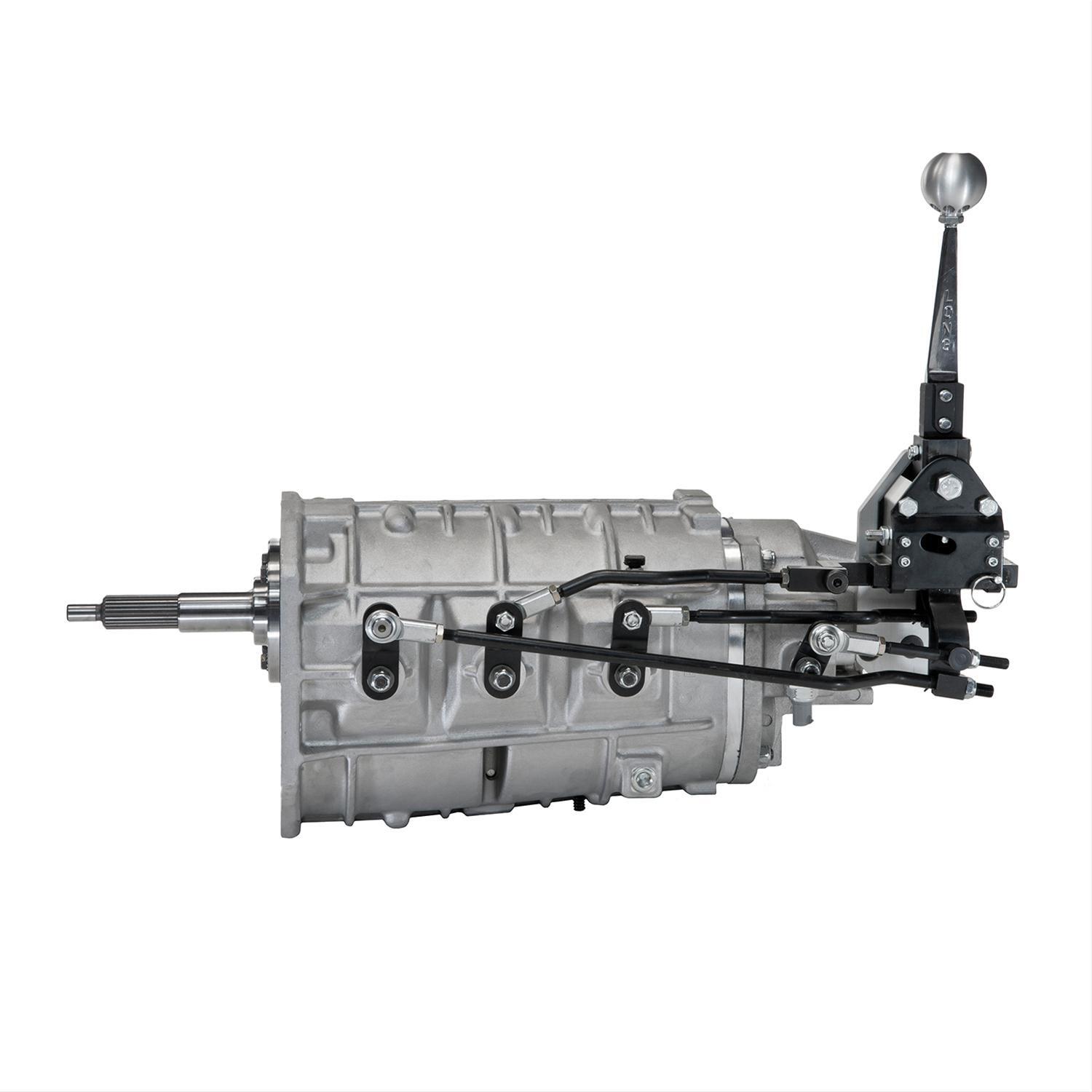

Richmond Gear Super Street 5-Speed Transmissions with Overdrive

Richmond Gear Super Street 5-speed transmissions feature a 5-speed design with overdrive that can handle up to 600 ft.-lbs. of torque. Based on the successful Richmond NASCAR-type design and technology, they are manufactured using the best in CNC machining, gear-cutting technology, and race-proven in-house treating. These transmissions include a long shifter for the ultimate in shift performance and durability. Available for Ford or GM applications, Richmond Gear Super Street 5-speed transmissions will make an excellent addition to your vehicle.

Specifications:

• Fifth Gear Ratio: .77


• First Gear Ratio: 3.33


• Fourth Gear Ratio: 1.00


• Input Shaft Diameter: 1.125 (Inch)


• Input Shaft Spline Quantity: 26


• Maximum Torque: 600 (Foot Pounds)


• Oil Capacity: 2 (Quart)


• Oil Type: 80w90 GL-4


• Output Shaft Diameter: 1.375 (Inch)


• Output Shaft Spline Quantity: 32


• Second Gear Ratio: 1.85


• Taxonomy A: Manual Transmission LD


• Taxonomy B: Complete Transmissions


• Taxonomy C: Richmond Super Street 5-Speed OD


• Third Gear Ratio: 1.31


• Transmission Model: Richmond Super Street 5-Speed

Fitment:
