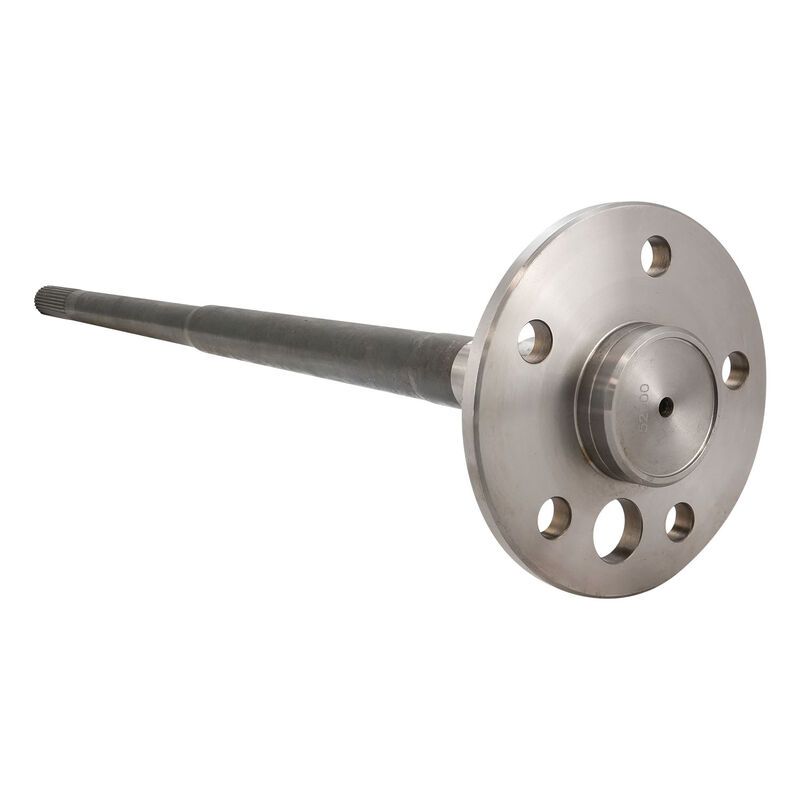

rts oe axle, ford 8in, 9in, 28 spline, street forged, 4140 dual heat treated. ford xt gt, xw, xy, lh 690mm length, small hub direct fit, 100mm spline

RTS OEM replacement axles are produced using state of the art equipment and manufacturing techniques. These 4140 Induction hardened steel axles shafts have hardened bearing seats and machined to fit directly into your factory fitted Ford 9 inch diff. They feature extra spline length on the end so they can be cut to fit your exact length in a modified situation. When quality is your aim, RTS axle shafts should be your choice. RTS Axle Decal included.

• Direct Fit for XT GT 8 inch , XW XY Length 9 inch diff


• Can be shortened to fit 65, 66 Ford Mustang with 8 inch and 9 inch diff


• 5 x 4.50" Stud pattern


• Suits small bearing


• Brake drum hub 2.427 / 61.65mm


• .605"hole diameter for factory style press in wheel studs


• 100mm spline length allows for shortening


• Note, prior to fitting assembled axle you need to lubricate axle seal surface area to stop seal burn


• This is a street performance axle which exceeds oem strength/quality and not a high-powered race axle.


• Available in XR to XY length & XA onward length


• Dedicated Left and Right hand side length
