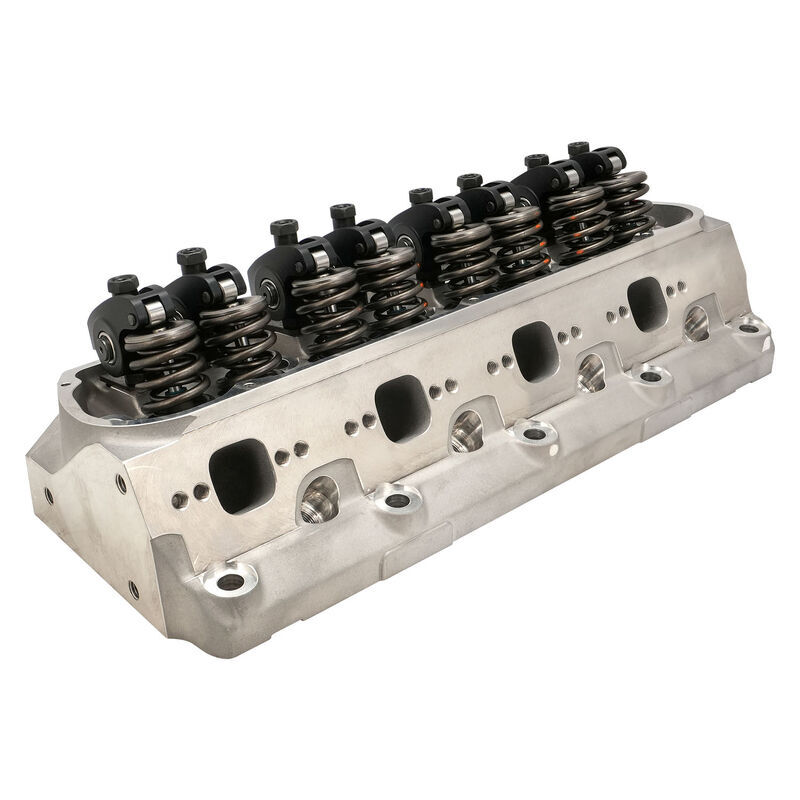

Proflow Cylinder Heads Kit, SuperMax 205, SB Ford 289, 302, 351W, with Aluminium Roller Rockers
Proflow does not sacrifice quality for a low price--you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They're also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.
Note: We suggest using Proflow Head Bolt Stepped washers part number PFEAHF-HBW. Proflow head bolt insert washers are designed to be used on Ford Windsor cylinder heads in applications where you have 7/16" head bolts being used in 1/2" bolt holes. This stops the head bolt hole distorting on aluminium heads when using 7/16'' bolts on 289 / 302 standard Windsor blocks.
Proflow's Pro Series 2024 rocker arms are designed for use in street/strip and track applications. This series of 2024 extruded billet aluminum, CNC-machined rockers are precision-finished with friction-reducing ground needle and cage bearings for superior performance and quiet operation. They're available for a wide array of engine applications, These Pro Series rocker arms are precision-engineered to withstand rigorous racing conditions. Order the set designed to fit your engine application.
Proflow Large Body Rockers increase engine power, enhance valve train stability & improve oiling
New extrusion based on improvements developed through FEA analysis, resulting in an even stronger, stiffer body without compromising mass
Contoured top give the rockers the best strength to weight ratio possible
Spiral lock type clips replace retaining Circlips
Specifications & Features:
Material
A356.2 Aluminum
Intake Port Volume
203cc
Intake seat size
2.08
Exhaust seat size
1.6
Intake Port Dimension
2.115" H x 1.300" W x 3/8 Radius
Intake Port Location
Stock
Exhaust Port Volume
70cc
Exhaust Port Dimension
1.400" H x 1.400" W
Exhaust Port Location
Raised .125"
Combustion Chamber Size
58cc
Valve Cover Bolt Pattern
Perimeter Bolt
Valve Angle
20°
Valve Spring Pocket Diameter
1.580" O.D
Max Valve Spring Pocket Machining
1.625" O.D
Deck Thickness
.750"
Minimum Bore Diameter
4.000"
Flat Mill
.006" per cc 54cc Max (from 58cc); 68cc Max (from 72cc);
Angle Mill
.009" per cc 48cc Max (from 58cc); 62cc Max (from 72cc);
Minimum Cross Sectional Area
2.165 sq. in.
Spark Plug Dimensions
14mm x .750" w/Gasket Seat
Head Bolt Diameter
1/2"
Recommended Components:
Intake Port Gasket, 1.200" X 2.000" w/ 3/8" radius, Fel-Pro #1262
Important: Do not port match your intake manifold to Fel-Pro gasket as it does not precisely fit MIC heads.
Exhaust Port Gasket, Fel-Pro #1487
Head Gasket, Fel-Pro #1011-1
SB Ford 1/2" Bolt Head Bolt Kit, ARP #154-3603
SB Ford 1/2" Bolt Head Stud Kit, ARP #254-4503
1/2" Bolt - 7/16" Thread Head Bolts, ARP 254-3708
Head Bolt Washer Kit, Manley
Stud Girdle
Suggested Manifold
Super Vic or Vic Jr.
Spark Plug Starting Range
Autolite 3922
